SiMa.ai DevKits
SiMa.ai offers a portfolio of MLSoC™-based development kits designed to support a broad spectrum of edge AI applications — from efficient vision inference to advanced multimodal and generative AI workloads.

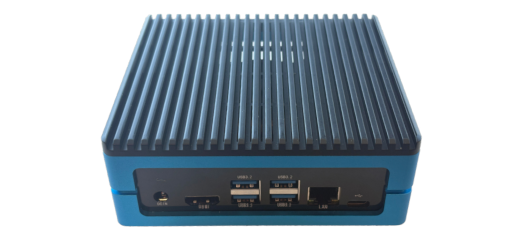

Modalix
A compact, power-efficient module for embedding Modalix AI capabilities into custom hardware designs.

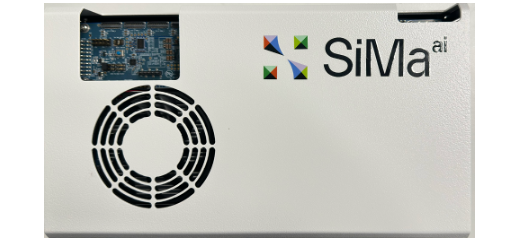

Modalix Early Access
Designed for modern AI at the edge with support for LLMs, multimodal inputs, and generative AI workloads.

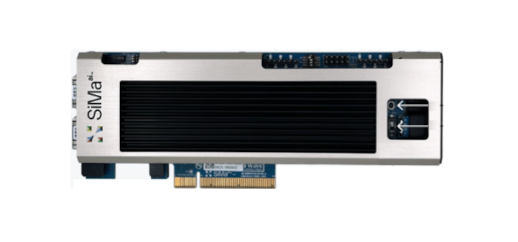

MLSoC
A proven, power-efficient platform for vision-centric edge AI applications. Ideal for deployment and development.
| Feature | Modalix | Modalix Early Access | MLSoC |
|---|---|---|---|
| Product Brief | view | view | view |
| ARM Cores | 8x ARM Cortex-A65 @ 1.5GHz | 8x ARM Cortex-A65 @ 1.5GHz | 4x ARM Cortex-A65 @ 1.15GHz |
| RAM Size | 32GB LPDDR5 | 64 GB LPDDR5 | 16 GB LPDDR4 |
| Storage | 16GB eMMC | 10 GB eMMC | 10 GB eMMC |
| SD Card Slot | ✖ | ✔ | ✔ |
| NVMe (PCIe) | ✔ 500GB | ✖ | ✖ |
| Ethernet | 1x 1GbE | 1x 1GbE (end0), 1x 10GbE (end1), 2x 10GbE SFP+ (end2/3) | 1x 1GbE |
| WiFi/LTE | 2x M.2 slots via carrier board, pending s/w support | ✖ | ✖ |
| MIPI CSI | 2x 2-lane MIPI CSI | 4x 4-lane MIPI CSI | ✖ |
| ISP (Image Signal Processor) | ARM C-71 @ 1.2 GHz | ARM C-71 @ 1.2 GHz | ✖ |
| GPIO / Headers | 40-pin GPIO header | 40-pin GPIO header | 40-pin GPIO header |
| USB | 4 USB 3.0 ports | ✖ | ✖ |
| HDMI | 1 HDMI 1.4 port | ✖ | ✖ |
| Graphics Controller | Silicon Motion SM768 | ✖ | ✖ |
| H.264/H.265 Encoder | 4kp60 | 4kp60 | 4kp30 |
| MJPEG Encoder | 4kp30 | 4kp30 | ✖ |
| H.264/H.265 Decoder | 4kp60 | 4kp60 | 4kp60 |
| AV1 and MJPEG Decoder | 4kp60 | 4kp60 | ✖ |
| Use as a PCIe Card in a host | ✖ | ✖ | ✔ |
