Machine Learning Model Quantization

Once the original trained model has been imported into the loaded_net format using the load_model() API, it can be quantized. The Sima.ai software and silicon currently supports 8-bit and 16-bit integer operations on the Machine Learning Accelerator (MLA) and floating-point operations on the Application Processing Unit (APU) and Computer Vision Unit (CVU). In general, pre and post-processing functions will be implemented on the APU and CVU whilst model layers such as convolution, pooling, etc. will run on the MLA. The partitioning across compute units will be done automatically by the quantizer and only the parts that run on the MLA will be quantized.

loaded_net.quantize(calibration_data: Iterable[InputValues], quantization_config: QuantizationParams, *, arm_only: bool = False, simulated_arm: bool | None = False, model_name: str | None = None, log_level: int | None = logging.NOTSET) → Model

This function takes a loaded_net as input and returns a quantized model (assuming arm_only is False).

Parameters:

• calibration_data – Required. The data to be used for calibration. Each data sample is passed through the loaded_net.

• quantization_config – Required. Holds parameters that control the calibration and quantization process (see ‘Setting The Quantization Config Parameters’).

• arm_only – Default is False. If set to True, then calibration and quantization are not performed. The returned model will be compiled to execute on the ARM processor. This option is provided to facilitate testing.

• model_name – If given, is used as the returned model’s name.

• log_level – Default is logging.NOTSET. Sets the logging level for this API call as described in the Logging section.

• simulated_arm – Do not use, leave at default value.

Returns:

Returns a quantized model.

The calibration data is an iterable (such as a list) and each element is a dictionary. The key, value pairs of the dictionary are used to associate an input name (the key) to a calibration data sample (the value). Here is an example in which we create a list of calibration data samples:

# read the numpy file of pre-processed data
dataset_f = np.load('preprocessed_data.npz')
data= dataset_f['x']

# this list will hold the calibration data
calib_data=[]
calib_images=100

# one dictionary for each
inputs = dict()
for i in range(calib_images):
    inputs['input_1'] = data[i]
    calib_data.append(inputs)

# quantize
quant_model = loaded_net.quantize(calibration_data=calib_data,
                                quantization_config=default_quantization,
                                model_name=model_name)

Setting the Quantization Configuration Parameters

Default Quantization Configuration

The default quantization configuration parameters are:

• Calibration method: MSE()

• activations: QuantizationScheme(asymmetric=True, per_channel=False, bits=8)

• weights: QuantizationScheme(asymmetric=False, per_channel=True, bits=8)

afe.apis.defines.default_quantization() → QuantizationParams

The default quantization parameters. It may be passed to quantize_net to quantize in the default way. It may be used as a basis for creating different quantization parameters.

Returns:

Returns the default quantization configuration.

from afe.apis.defines import default_quantization

# quantize
quant_model = loaded_net.quantize(calibration_data=calib_data,
                                quantization_config=default_quantization,
                                model_name=<your model name> )

Defining Different Quantization Schemes

Note that for weights, only symmetric quantization is supported and for activations, only per tensor quantization is supported.

afe.apis.defines.quantization_scheme(asymmetric: bool, per_channel: bool, bits: int = 8) → QuantizationScheme

Constructs a quantization scheme, which determines the range of quantizations that a quantization algorithm may choose from.

Parameters:

• asymmetric – Required. Is whether to use asymmetric (versus symmetric) quantization.

• per_channel – Required. Is whether to use per-channel (versus per-tensor) quantization.

• bits – Default is 8. Is the number of bits of precision to use in the quantized representation of activations. It must be 8 (for int8) or 16 (for int16). The quantization of weights is fixed as int8.

Returns:

Returns the defined quantization scheme.

from afe.apis.defines import quantization_scheme, default_quantization
import dataclasses

# define quantization schemes for weights and activations
symmetric_per_tensor_8_bits = quantization_scheme(asymmetric=False, per_channel=False, bits=8)
symmetric_per_channel_8_bits = quantization_scheme(asymmetric=False, per_channel=True, bits=8)
asymmetric_per_tensor_8_bits = quantization_scheme(asymmetric=True, per_channel=False, bits=8)

# set the quantization configuration to the default
quant_configs = default_quantization

# modify default to change weight quantization
quant_configs = dataclasses.replace(quant_configs, weight_quantization_scheme=symmetric_per_channel_8_bits)

# modify default to change activation quantization
quant_configs = dataclasses.replace(quant_configs, activation_quantization_scheme=symmetric_per_tensor_8_bits)


# quantize
quant_model = loaded_net.quantize(calibration_data=calib_data,
                                quantization_config=quant_configs,
                                model_name=<your model name>)

There is also a default int16 quantization config that we found works better in average:

afe.apis.defines.int16_quantization() → QuantizationParams

The recommended quantization parameters for int16 precision. It may be used as a basis for creating different quantization parameters.

Returns:

Returns the recommended quantization configuration for int16.

from afe.apis.defines import int16_quantization

quant_model = loaded_net.quantize(calibration_data=calib_data,
                                quantization_config=int16_quantization,
                                model_name=<your model name>)

Manual Mixed-precision Quantization

ModelSDK supports quantizing FP32 model into mixed INT8 and INT16 quantization. To quantize a model with mixed precision you need to add layers/operators from your models that you are targeting for INT16 quantization. By default ModelSDK quantize FP32 to INT8. So remaining layers/operators will quantize to INT8. To add layers to INT16 quantization scheme you need to call with_custom_quantization_configs from default_quantization and add INT16 targeted layers to quantization_config parameter of quantize API. Example code for resnet50 model to add in your code before quantize() API call.

from afe.core.configs import QuantizationPrecision

# Quantize the loaded net setting quantization precision of some nodes to int16.
# User can provide the custom quantization config dictionary in the following form:
#   custom_config_dict = {'node_name': {'quantization_config_field': value}}
# For example, in order to set the precision of a certain node to int16, the user needs
# to provide the config as follows:
#   custom_config_dict = {'node_name': {'quantization_precision': QuantizationPrecision.INT_16}}
# User must get the node names from the SiMaIR graph.  To obtain node names from
# SiMaIR graph, user needs to run int8 quantization and get the names of nodes
# examining the .sima.json in netron.  It is user's responsibility to decide which
# nodes should be quantized with higher precision.

int16_nodes = [
    "MLA_0/conv2d_add_relu_0", "MLA_0/max_pool2d_1", "MLA_0/conv2d_add_relu_2",
    "MLA_0/conv2d_add_relu_3", "MLA_0/conv2d_add_4", "MLA_0/conv2d_add_5"
]
quant_configs = default_quantization.with_custom_quantization_configs(
    {int16_node: {'quantization_precision': QuantizationPrecision.INT_16} for int16_node in int16_nodes}
)

sdk_net = loaded_net.quantize(
    calibration_data=calibration_data,
    quantization_config=quant_configs,
    model_name="tut_resnet50"
)

You can verify whether above layers/operators are added to INT16 or not by executing and saving sdk_net output. As shown below in tut_resnet_tensorflow.sima.json file search for any layer that you added in INT16_nodes list. You can see in output input_int16 will be True for that layer/operator.

sima-user@docker-image-id:model_zoo/resnet50/sdk_net_manual_mixed$ ls -ltr
    total 100536
    -rw-r--r-- 1 sima-user sima-user 388338 Aug  1 15:18 tut_resnet_tensorflow.sima.json
    -rw-r--r-- 1 sima-user sima-user 102552052 Aug  1 15:18 tut_resnet_tensorflow.sima
sima-user@docker-image-id:model_zoo/resnet50/sdk_net_manual_mixed$ vi tut_resnet_tensorflow.sima.json
    "class_name": "MLA_0/Conv2DAddActivation_5",
                            "name": "MLA_0/conv2d_add_5",
                            "inbound_nodes": [
                            ...
                            ...
                                "activ_attrs": null,
                                "input_int16": true,
                                "msb_left_shift": true,

Defining a Different Calibration Method

When configuring the quantization parameters users can select from five calibration methods as listed below. The MSE method has been observed to consistenly provide better results and therefore has been set as the default calibration method. Previously, Min-Max was the default method.

afe.apis.defines.QuantizationParams.with_calibration(method: CalibrationMethod) → QuantizationParams

Set the calibration method for activation tensors. An observer is inserted at each layer to collect statistics of the output tensors. The min and max values are derived from the statistics and are used to compute the quantization parameters (scale and zero point) for each layer. The following calibration methods are supported:

Parameters:

asymmetric – Required. You can use one of the following Calibration Methods:

Returns:

Returns the changed quantization configuration.

HistogramMSEMethod(num_bins: int) → QuantizationParams

Default. The observer records the running histogram of tensor values during calibration. Based on the distribution of the histogram, the optimal min and max values are searched such that the mean squared error (MSE) between the quantized model and float point model is minimized. The optimal min and max values are used to compute the quantization parameters in the same way as in the MIN_MAX method. The number of bins is default to 2048 with the from_str() method, or can be changed with the HistogramMSEMethod(num_bins) method.

Parameters:

num_bins – Default is 2048.

Returns:

Returns the HistogramMSEMethod calibration method.

MinMaxMethod() → QuantizationParams

The observer records the minimum and maximum of output tensors at each layer, and uses that statistic to compute the quantization parameters. If the minimum equals the maximum, the scale and zero_point are set to 1.0 and 0.

Returns:

Returns the MinMaxMethod calibration method.

MovingAverageMinMaxMethod() → QuantizationParams

The observer records the moving averages of the minimum and maximum of output tensors at each layer, and uses that statistic to compute the quantization parameters. An exponential filter with coefficient 0.01 is used to calculate the averages of min and max values. If the average minimum equals the average maximum, the scale and zero_point are set to 1.0 and 0.

Returns:

Returns the MovingAverageMinMaxMethod calibration method.

HistogramEntropyMethod(num_bins: int) → QuantizationParams

The observer records the running histogram of tensor values during calibration. Based on the distribution of the histogram, the optimal min and max values are searched such that the KL divergence metric (relative entropy) between the quantized model and float point model is minimized. The optimal min and max values are used to compute the quantization parameters in the same way as in the MIN_MAX method. The number of bins is default to 512 with the from_str() method, or can be changed with the HistogramEntropyMethod(num_bins) method.

Parameters:

num_bins – Default is 512.

Returns:

Returns the HistogramEntropyMethod calibration method.

HistogramPercentileMethod(select_percentile: float, num_bins: int) → QuantizationParams

The observer records the running histogram of tensor values during calibration. Based on the distribution of the histogram, the optimal min and max values are determined for the select percentile. The optimal min and max values are used to compute the quantization parameters in the same way as in the MIN_MAX method. When the percentile calibration method is constructed by the “from_str” method, default values of 99.9% for select_percentile and 1024 for number of bins are used. For other percentile values or number of bins, users must use the class method.

Parameters:

• select_percentile – Default is 99.9.

• num_bins – Default is 1024.

Returns:

Returns the HistogramPercentileMethod calibration method.

afe.apis.defines.CalibrationMethod.from_str(string: str) → QuantizationParams

The user can choose one of the calibration methods used above using a string.

Parameters:

string – Required. The chosen calibration method to choose from: MIN_MAX or min_max for MinMaxMethod(). MOVING_AVERAGE or moving_average for MovingAverageMinMaxMethod() MSE or mse for HistogramMSEMethod(num_bins) HISTOGRAM_ENTROPY or entropy for HistogramEntropyMethod(num_bins) HISTOGRAM_PERCENTILE or percentile for HistogramPercentileMethod(select_percentile: float, num_bins: int)

Returns:

Returns the chosen calibration method.

For example, the following code changes the calibration method in the default quantization configuration:

    # Use MSE calibration method
quant_configs = default_quantization
calibration_method = CalibrationMethod.from_str('mse')
quant_configs = quant_configs.with_calibration(calibration_method)
    sdk_net = loaded_net.quantize(calibration_data=calibration_data,
                                               quantization_config=quant_configs,
                                               model_name="test_model")

    # Use percentile calibration method with custom percentile value and number of bins
quant_configs = default_quantization
calibration_method = HistogramPercentileMethod(91.0, 2048)
quant_configs = quant_configs.with_calibration(calibration_method)
    sdk_net = loaded_net.quantize(calibration_data=calibration_data,
                                               quantization_config=quant_configs,
                                               model_name="test_model")

from afe.apis.defines import default_quantization,MinMaxMethod,MovingAverageMinMaxMethod,HistogramMSEMethod,HistogramEntropyMethod,HistogramPercentileMethod
import dataclasses

# set the quantization configuration to the default
quant_configs = default_quantization

# modify the default quantization to use moving average min-max calibration
quant_configs = dataclasses.replace(quant_configs, calibration_method=MovingAverageMinMaxMethod())

# quantize
quant_model = loaded_net.quantize(calibration_data=calib_data,
                                quantization_config=quant_configs,
                                model_name=<your model name> )

Defining INT32 Quantization for Final MLA Layer

The ModelSDK supports quantization of FP32 models with mixed precision. That is, you need to add layers/operators from your models targeting int16 quantization. By default, the FP32 model will quantize FP32 into int8 precision and the remaining layers/operators will be quantized to int16 precision.

To add layers to the int16 quantization scheme, call with_custom_quantization_configs from default_quantization and add int16 targeted layers to quantization_config parameter of the quantize API.

afe.apis.defines.QuantizationParams.with_custom_quantization_configs(custom_quantization_configs: Dict[NodeName, Dict[str, Any]]) → QuantizationParams

Set custom quantization options for select nodes. The custom_quantization_configs is a dictionary specifying a node name with new value in QuantizationConfigs. This API is used in the following two scenarios (see examples below): #. Enable the int32 output of the last convolution node. #. Enable mixed-precision quantization.

Users must get the node names from the SiMa IR graph. To obtain node names from a SiMa IR graph, a user must run int8 quantization of a model and get the names of nodes by saving and examining the .sima.json file in Netron.

Returns:

Returns the quantization configuration with the custom quantization config.

Below is an example of int8 quantization but the last convolutiuon node is quantized as int32. Assuming MLA_1/conv2d_add_84 is the node name of the last layer of a model:

custom_quantization_configs = {
"MLA_1/conv2d_add_84": {"output_int32": True}
}
quant_configs = default_quantization.with_custom_quantization_configs(
      custom_quantization_configs
 )

The below is an example of mixed-precision quantization where most layers are quantized as int8 and the remaining layers are quantized as int16.

 int16_nodes = [
 "MLA_0/conv2d_add_relu_0",
 "MLA_0/max_pool2d_1",
 "MLA_0/conv2d_add_relu_2",
 "MLA_0/conv2d_add_relu_3",
 "MLA_0/conv2d_add_4",
 "MLA_0/conv2d_add_5"]
 quant_configs = default_quantization.with_custom_quantization_configs(
 {
 int16_node: {'quantization_precision': QuantizationPrecision.INT_16}
for int16_node in int16_nodes
 }
  )

Overriding Configuration Parameters of Quantization

afe.apis.defines.QuantizationParams.with_activation_quantization(scheme: QuantizationScheme) → QuantizationParams

Set the quantization scheme for activation tensors. For activations, the per-channel quantization scheme is not supported. With per-tensor quantization, the asymmetric flag can be set to true or false for activations.

Parameters:

scheme – Required. The quantization scheme to be used for the model activations.

Returns:

Returns the quantization configuration with the custom quantization config.

afe.apis.defines.QuantizationParams.with_weight_quantization(scheme: QuantizationScheme) → QuantizationParams

Set the quantization scheme for weight tensors. For weights, the asymmetric quantization scheme is not supported. With symmetric quantization, the per-channel flag can be set to true or false for weights.

Parameters:

scheme – Required. The quantization scheme to be used for the model weights.

Returns:

Returns the quantization configuration using the chosen weight quantization scheme.

afe.apis.defines.QuantizationParams.with_unquantized_nodes(node_names: Set[str]) → QuantizationParams

Select nodes to prevent from quantizing. Nodes with the given names will not be quantized. This replaces the set of node names selected by any previous call of with_unquantized_nodes. Because some nodes are created or renamed by the compiler, node names are sensitive to changes in optimization or quantization settings.

Parameters:

node_names – Required. Set of strings with the nodes names that will not be quantized.

Returns:

Returns the quantization configuration setting the chosen unquantized nodes.

with_requantization_mode(requantization_mode: RequantizationMode) → QuantizationParams

Select requantization mode for convolutions. Two modes are supported: RequantizationMode.sima uses arithmetic developed for fast performance on SiMa’s accelerator; RequantizationMode.tflite uses TFLite’s arithmetic with an 8-bit constant multiplier. The default is RequantizationMode.sima.

Parameters:

requantization_mode – Required. The requantization mode to be used.

Returns:

Returns the quantization configuration with the chosen requantization config.

with_bias_correction(enable: bool = True) → QuantizationParams

Turn on/off bias correction for quantization of convolutions with a bias. A bias term is calculated based on the observed input mean and the quantized weights, then added to the convolution output to compensate for quantization error. The algorithm is described in this paper, Section 4.2.

Parameters:

requantization_mode – Required. A True value enables bias correction. A False value disables bias correction.

Returns:

Returns the quantization configuration enabling or disabling bias correction.

The following is an example of how to construct quantization parameters. It overrides how activations are quantized, sets requantization mode, and enables bias correction, while leaving other settings at their default value.

requantization_mode = RequantizationMode.tflite
asymmetric_pertensor_int16 = quantization_scheme(asymmetric=True, per_channel=False, bits=16)
enable_bias_correction = True
quant_config = default_quantization \
    .with_activation_quantization(asymmetric_pertensor_int16) \
    .with_requantization_mode(requantization_mode) \
    .with_bias_correction(enable_bias_correction)

Code Template for Cycling through Quantization Options

This outline shows one possible method of running all quantization options for a single model:

# define quantization schemes & calibration methods
symmetric_per_tensor = quantization_scheme(asymmetric=False, per_channel=False)
symmetric_per_channel = quantization_scheme(asymmetric=False, per_channel=True)
asymmetric_per_tensor = quantization_scheme(asymmetric=True, per_channel=False)

weights_schemes = [symmetric_per_channel,symmetric_per_tensor]
activation_schemes = [symmetric_per_tensor,asymmetric_per_tensor]
cal_methods = [MinMaxMethod(), MovingAverageMinMaxMethod(), HistogramMSEMethod(1024), HistogramEntropyMethod(), HistogramPercentileMethod(99.9)]

Track the best results in a variable:

# set initial best accuracy to 0
current_best_accuracy = 0.0

Cycle through all options, evaluate each time and save the quantized model if accuracy improves:

quant_configs = default_quantization

for c in cal_methods:
    quant_configs = dataclasses.replace(quant_configs, calibration_method=c)

    for w in weights_schemes:
        quant_configs = dataclasses.replace(quant_configs, weight_quantization_scheme=w)

        for a in activation_schemes:
            quant_configs = dataclasses.replace(quant_configs, activation_quantization_scheme=a)

            # quantize
            quant_model = loaded_net.quantize(calibration_data=calib_data,
                                        quantization_config=quant_configs,
                                    model_name=<your model name>)

            # iterate over test data to evaluate quantized model
            correct=0
            for input_name in model_ip_names:
                for i in range(0,test_images):
                    inputs = dict()
                    inputs[input_name] = _preprocessing(data[i])


            # Evaluate the quantized net - argmax post-processing
            quantized_net_output = np.argmax(quant_model.execute(inputs))

            if labels[i]==quantized_net_output:
                correct+=1

            accuracy = correct/test_images
            # save model if accuracy improved
            if accuracy > current_best_accuracy:
                current_best_accuracy = accuracy

            quant_model.save(model_name = model_name, output_directory = saved_model_directory)

Quantizing 8-bit and 16-bit Data Types

The following table shows the supported operators when quantizing FP32 models in 8-bit and 16-bit integers.

Supported Operators for Datatypes

Operator	8-bit	16-bit
ArgMinMaxOperator	Yes	No
BatchMatMulOperator	Yes	No
BinaryElementwiseOperator (add, sub, mul)	Yes	Yes
BroadcastOperator	Yes	Yes
ClipOperator	Yes	No
ConcatBatchOperator	Yes	No
ConcatOperator	Yes	Yes
Conv2DOperator	Yes	Yes
LayerNormOperator	Yes	No
LRNOperator	Yes	No
PoolOperator (global avgpool)	Yes	Yes
PoolOperator (maxpool, avgpool)	Yes	Yes
PreluOperator	Yes	No
ReluOperator	Yes	No
RequantizationOperator	No	Yes
SliceOperator	Yes	Yes
SoftmaxOperator	Yes	Yes
TransposeOperator	Yes	No
UDFOperator	Yes	Yes
UpscaleOperator	Yes	Yes

Saving and Loading a Quantized Model

We can save and load the quantized model to disk as follows:

Model.save(model_name: str, output_directory: str = '', *, log_level: Optional[int] = logging.NOTSET)→ None

Saves a Model. This API will generate two files: a SiMa.ai file for the saved network and a JSON file that can be displayed using Netron. The SiMa.ai file name is created by appending .sima to model_name, if it does not contain the extension .sima. The JSON file name is created by appending “.json” to the sima file name after the extension “.sima”. Both files are put into output_directory, which is by default the current working directory.

Parameters:

• model_name – Required. The name to save the model as.

• output_directory – The default values is /.. The folder to save the model in.

• log_level – The default value is logging.NOTSET. The type of logging to have during the saving of the model.

Model.load(model_name: str, network_directory: str = '', *, log_level: Optional[int] = logging.NOTSET)→ Model

Loads a Model from a sima file. The file name to load is created by appending “.sima” to the model name, if it does not have the extension “sima”. It is loaded from network_directory, which is by default the current directory.

Parameters:

• model_name – Required. The name of the model to be loaded.

• network_directory – The default values is /.. The folder to load the model from.

• log_level – The default value is logging.NOTSET. The type of logging to have during the loading of the model.

quant_model.save(model_name = model_name,
                output_directory = saved_model_directory)

This will create two files: model_name.sima and model_name.sima.json which are wrtten to the folder specified by output_directory. If no output directory is given, the files are written to the current working directory.

The JSON file can be opened for viewing using the third-party Netron tool.

TFLite Pre-Quantized Support

The ModelSDK is able to ingest a model that was previously quantized using TFLite. The model is first imported using the load_model() API function and then converted using .convert_to_sima_quantization() to prepare for compiling. Any floating-point computation in the model will remain floating-point and will not run on the MLA.

This example shows how to load and convert a pre-quantized TFlite model that has a single imput named input_1 of shape 1,224,224,3:

# imports
from afe.load.importers.general_importer import ImporterParams, tflite_source
from afe.apis.loaded_net import load_model
from afe.ir.tensor_type import ScalarType
from afe.ir.defines import QuantizationFlavor

model_path='path/to/quantized/tflite/model'

# input shapes dictionary - NHWC format
# each key,value pair defines an input name and its shape
input_shapes = {'input_1': (1,224,224,3)}


# input types dictionary
# each key,value pair defines an input and its type
input_types = {'input_1': ScalarType.uint8}

# importer parameters
importer_params: ImporterParams = tflite_source(model_path=model_path,
                                                shape_dict=input_shapes,
                                                dtype_dict=input_types)

# load the model
loaded_net = load_model(importer_params)

# Convert quantized model - default is QuantizationFlavor.sima
quant_model = loaded_net.convert_to_sima_quantization()

# or use TFLite flavor..
#quant_model = loaded_net.convert_to_sima_quantization(quantization_flavor=QuantizationFlavor.tflite)



# save the quantized model
quant_model.save(model_name = model_name,
                output_directory = saved_model_directory)

The ModelSDK generally uses different quantized arithmetic than in other frameworks. Conversion will introduce differences due to rounding and other approximations. Two main quantization “flavors” are supported:

TFLite Quantization	Description
QuantizationFlavor.sima (default)	An efficient form of arithmetic that may sometimes sacrifice accuracy. Higher performance with possible loss of precision.
QuantizationFlavor.tflite	Performs arithmetic as described by TFlite documentation.It involves the operations multiply, shift, round, and add. Less performance but may be more accurate.

It is recommended to try using the default quantization flavor, and if the model’s accuracy is not sufficient, then use QuantizationFlavor.tflite.

Per-Layer Quantization Statistics

Given the FP32 and quantized versions of an ML network, ModelSDK has the ability to report per-layer quantization statistics. The API function to invoke this feature is shown below:

Model.analyze_quantization_error(evaluation_data: Iterable[InputValues], error_metric: Metric, *, local_feed: bool, log_level: int | None = logging.NOTSET)

Module:

Model

This function is useful for determining how each layer of the quantized model contributes to the overall error.

Parameters:

• evaluation_data – A Python Iterable that provides data samples for the error analysis.

• error_metric – String. Defines the error calculation method: * mae: Mean absolute error * mse: Mean squared error * psnr: Peak signal-to-noise ratio

• local_feed – Boolean. See description below.

• log_level – Default is logging.NOTSET. Sets the logging level for this API call as described in the Logging section.

• simulated_arm – Do not use, leave at default value.

# load FP model
loaded_net = load_model(params)

# quantize
quant_model = loaded_net.quantize(calibration_data=calib_data,
                                quantization_config=default_quantization,
                                model_name=model_name)


# run per-layer analysis
quant_model.analyze_quantization_error(evaluation_data=test_data,
                                    error_metric='mae',
                                    local_feed=True)


# save
quant_model.save(model_name = model_name,
                output_directory = saved_model_directory)

Once the model is saved to disk, the _model_name_.sima.json file will contain the error values for each layer. These can be seen by examining the JSON file with a text editor and searching for the “layer Statistics” string:

"_status": "SIMA_QUANTIZED",
"Layer Statistics": {
    "metric": "mae",
    "error_value": 3.9165286500938237,
    "__decode_key__": "LayerStats"
},

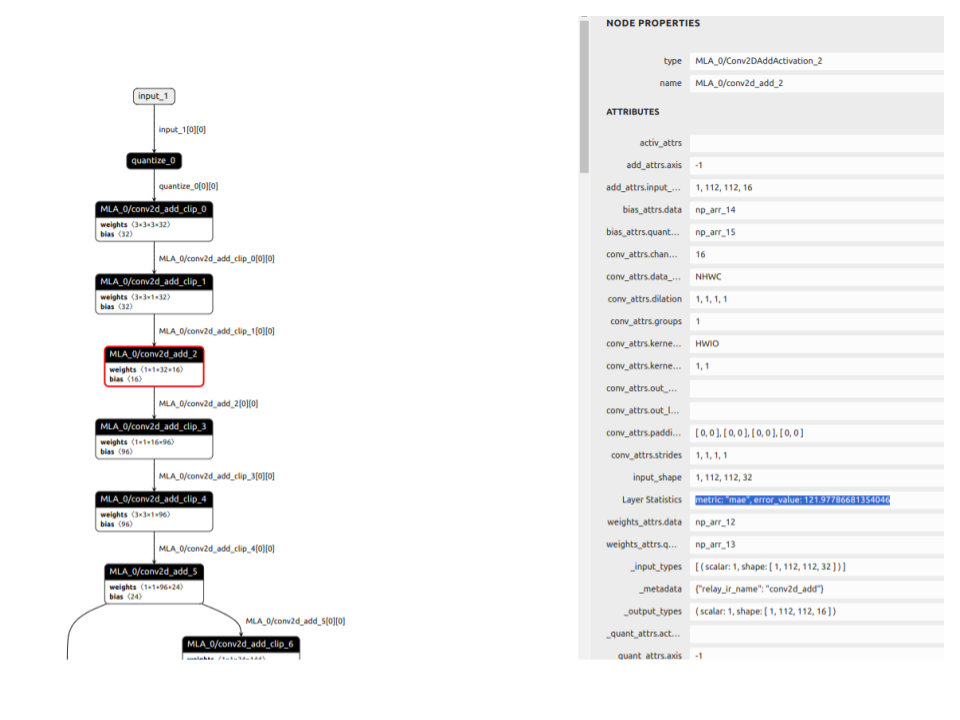

..or by opening the JSON file with Netron, click on the layer in model digaram and view the ‘Layer Statistics’ field:

Note

It is not currently possible to run per-layer quantization statistics on a quantized model that has first been saved to disk and then loaded. It must be run a model that has just been quantized using the .quantize() API.

local_feed=True: The floating-point model is passed the evaluation data as defined by the evaluation_data argument. The input of each node in the quantized network is fed the output data from the preceding node in the floating-point network and the output of the quantized node is dequantized and compared to the output of the equivalent node in the floating-point network - the error value is calculated as per the chosen metric. The displayed error value is the error value for that particular node only,

local_feed=False: The quantized model and the floating-point model that it was generated from are passed the same identical set of evaluation data as defined by the evaluation_data argument. The output of each node of the quantized model is dequantized and compared to the output of the corresponding node in the floating-point model - the error_value in the JSON file is the error of cumulative error of the quantized network up to that particular node (calculated as per the chosen metric). The error_value shown in the last node will be the cumulative error value of the entire quantized network.

Executing Loaded and Quantized Models

Th ModelSDK allows quantized models to be executed in software with user-supplied input data so that the results can be evaluated. The quantized model is executed using a software implementation of the quantized operators. The model is executed with a single set of input tensor values and the output tensor values are returned. It does not simulate execution on the processor.

LoadedNet.execute(inputs: InputValues, *, log_level: int | None = logging.NOTSET) → List[ndarray]

Module:

Model

Executes a loaded network using a software implementation of operators. The network is executed with a single set of input tensor values and the output tensor values are returned. It does not simulate execution on the processor. Internally, it uses the TVM operators for FP32 models and quantized models, respectively.

Parameters:

• inputs – A Python Iterable that provides data samples for the execution.

• log_level – Default is logging.NOTSET. Sets the logging level for this API call as described in the Logging section.

Evaluating Accuracy of Quantized Models

The ModelSDK allows users to evaluate the accuracy of quantized models using the methods described below and the associated API functions.

• (Default method) Bit-accurate evaluation using Numpy routines in ML kernels - specify fast_mode=False in Model.execute() API.

• (Second method) Bit-approximate evaluation using Tensorflow-optimized code - specify fast_mode=True in Model.execute() API.

Model.execute(inputs: InputValues, fast_mode: bool = False, *, log_level: int | None = logging.NOTSET) → List[ndarray]

Module:

Model

This function is useful for determining how each layer of the quantized model contributes to the overall error.

Parameters:

• inputs – A Python Iterable that provides data samples for the execution.

• fast_mode – Default is False. Sets execution mode for quantized convolution operators. When it is True, the quantized convolution operators will be executed with Tensorflow library, which tends to be fast but may not match the MLA implementation. When it is False, the quantized convolution operators will be executed with the MLA kernel implementation, which tends to be slow but matches the MLA output bit exactly.

• log_level – Default is logging.NOTSET. Sets the logging level for this API call as described in the Logging section.

The following code shows an example of how to use the .execute() API. In this example we have a numpy file of pre-processed data samples which are fed into the quantized model. The model has a single input input_1 and a single output:

Example Code

# quantize
quant_model = loaded_net.quantize(calibration_data=calib_data,
                                quantization_config=quant_configs,
                                model_name=model_name)


# read numpy file of preprocessed data & labels
dataset_f = np.load('preprocessed_data.npz')
test_data= dataset_f['x']
labels = dataset_f['y']


inputs = dict()
fp32_correct = 0
quant_correct = 0
# iterate over all test data
for i in range(test_images):

    # key=input name, value=data sample
    inputs['input_1'] = data[i]

    # execute quantized model - returns a list of ndarray
    tvm_fp32_model_out = loaded_net.execute(inputs)
    quant_model_out = quant_model.execute(inputs, fast_mode=True)

    # argmax
    fp_32prediction = np.argmax(tvm_fp32_model_out[0])
    quant_prediction = np.argmax(quant_model_out[0])

    # check output
    if fp_32prediction == labels[i]: fp32_correct+=1
    if quant_prediction == labels[i]: quant_correct+=1

(Third method) Bit-accurate evaluation of a quantized model in Accelerator Mode. This method executes a model on the SiMa development kit which must be connected to a network.

Model.execute_in_accelerator_mode(input_data: Iterable[InputValues], devkit: str, *, username: str = cp.DEFAULT_USERNAME, password: str = '', batch_size: int = 1, compress: bool = True, tessellate_parameters: TessellateParameters | None = None, log_level: int | None = logging.NOTSET, l2_caching_mode: L2CachingMode = L2CachingMode.NONE) → List[np.ndarray]

Module:

Model

Invoke the function Model.execute_on_accelerator_mode() with a list of pre-processed images. The API first compiles the model into an .lm file, and then obtains inference results by running the .lm file on the development kit.

Parameters:

• input_data – The model is executed with a single set of input tensor values and the output tensor values are returned.

• devkit – The URL for the development kit.

• username – User login credential on the development kit.

• password – User login credential on the development kit.

• batch_size – Batch size to use in the compiled model.

• compress – A flag to enable/disable DRAM data compression in the compiled LM file.

• log_level – This sets the logging level for this call as described in the Logging section.

• tessellate_parameters – Reserved parameter and takes default value.

• l2_caching_mode – Reserved parameter and takes default value.

Example Code

     import os

     import cv2
     import numpy as np
     import argparse
     import time
     import pickle as pkl
     from typing import Any
     from afe.apis.defines import default_quantization
     from afe.apis.loaded_net import load_model
     from afe.core.utils import convert_data_generator_to_iterable, length_hinted
     from afe.ir.tensor_type import ScalarType
     from afe.load.importers.general_importer import tensorflow_source
     from afe.apis.release_v1 import DataGenerator
     from afe.apis.error_handling_variables import enable_verbose_error_messages

     """
     Script for quantizing, compiling and running model in accelerator mode.
     """

     MODEL_DIR = './UR_pb_resnet50-v1.5_fp32_224_224.pb'
     DATASET_DIR = './imagenet/val224.pkl'
     OUTPUT_DIR = './output'

     DAVINCI_HOSTNAME = ""
     DAVINCI_USERNAME = "sima"
     DAVINCI_PASSWORD = ""

     NUM_SAMPLES = 10


     def pre_process_func(image: np.ndarray) -> np.ndarray:
     from tensorflow.keras.applications.imagenet_utils import preprocess_input

     img = image.transpose([1, 2, 0]).astype(np.float32)
     img = preprocess_input(img)[:, :, ::-1]
     img = cv2.resize(img, (224, 224))
     return img


     def load_pickle(path: str) -> Any:
     with open(path, 'rb') as f:
     v = pkl.load(f)
     return v


     def _create_calibration_data():
     dataset = load_pickle(DATASET_DIR)
     input_generator = DataGenerator({"input_tensor": dataset['data']})
     # Apply the preprocessing function to the dataset
     input_generator.map({"input_tensor": pre_process_func})
     input_iterable = convert_data_generator_to_iterable(input_generator,
                                                     length_limit=NUM_SAMPLES)
     return input_iterable


     def main(model_path: str, hostname: str, username: str, password: str, enable_verbose_message: bool):
     print("SiMa Model SDK tutorial example of running ResNet50 model in Accelerator Mode")

     if enable_verbose_message:
         enable_verbose_error_messages()

     os.makedirs(OUTPUT_DIR, exist_ok=True)
     model_name = os.path.split(model_path)[1]
     model_prefix = os.path.splitext(model_name)[0]

     # Models importer parameters
         input_name = "input_tensor"
         output_names = ["resnet_model/dense/BiasAdd"]
         input_shape = (1, 224, 224, 3)
         input_dtype = ScalarType.float32
         input_shapes_dict = {input_name: input_shape}

     # refer to the SDK User Guide for the specific format
         importer_params = tensorflow_source(model_path, input_shapes_dict, output_names)
         loaded_net = load_model(importer_params)

     # quantization with real training data samples
     # Note that quantization data is ALWAYS NHWC
         calibration_data = _create_calibration_data()

         print("Quantizing the model.")
         model_sdk_net = loaded_net.quantize(length_hinted(NUM_SAMPLES, calibration_data),
                 default_quantization,
                 model_name=model_prefix,
                 arm_only=False)

        saved_model_directory = "sdk"
        model_sdk_net.save(model_name=model_name, output_directory=saved_model_directory)

         print("Executing quantized model in accelerator mode.")
         input_data = _create_calibration_data()
         start_time = time.time()
         outputs = model_sdk_net.execute_in_accelerator_mode(
           input_data=length_hinted(NUM_SAMPLES, input_data),
           devkit=hostname,
           username=username,
           password=password)
         end_time = time.time()
         print(f"Model is executed in accelerator mode. Elapsed time: {end_time - start_time} [s].")

         print("End of tutorial example of ResNet50 in Accelerator Mode.")


     if __name__ == "__main__":
         parser = argparse.ArgumentParser(description="Script with optional arguments")
         parser.add_argument('--model_path', type=str, default=MODEL_DIR)
         parser.add_argument('--hostname', type=str, default=DAVINCI_HOSTNAME)
         parser.add_argument('--username', type=str, default=DAVINCI_USERNAME)
         parser.add_argument('--password', type=str, default=DAVINCI_PASSWORD)
         parser.add_argument('--enable_verbose_message', action='store_true', help="Enable verbose messages")
         args = parser.parse_args()
         main(args.model_path, args.hostname, args.username, args.password, args.enable_verbose_message)

Large Tensor Models

Functionally, the ModelSDK has minimal limitations in what size models it can handle and compile. Traditionally, in Machine Learning there have been limitations on what model sizes can be executed on the hardware. That is, the number of parameters in the model directly dictates which models can and cannot be run on the hardware due to memory limitations. SiMa.ai has no such limitation on the number of parameters due to our memory management in software and hardware. In addition to loading model parameters, the MLA must store all intermediate activations. Traditionally, if activation sizes exceed the size of the local memory, model compilation would fail. This is not the case with the MLA and the ModelSDK. The MLA compiler always attempts to execute the model by storing all intermediate activations within the MLA local memory, maximizing temporal and spatial locality. Any model that exceeds the internal memory capacity of the MLA is referred to as a large tensor model. In these cases, the compiler should successfully be able to compile the model by partially storing intermediate tensors in DRAM. This will incur a substantial performance loss in comparison to a non large tensor model. But model compilation will be successful and developers can run it on the MLSoC device to test if performance meets application requirements. The large tensor models might suffer from long compilation times, ranging anywhere from minutes to hours depending on the model. Further optimizations to both compilation and runtime performance will be available in future releases of the Palette software.

Limitations with Compilation of Large Tensor Models

The MLA compiler optimizes model execution by attempting to store all intermediate tensors in L1 and L2 memory. However, there are certain models for which one or more intermediate tensors are too large to fit into the allocated space in L1 and L2 memory. In such large tensor models, these intermediate tensors must be stored to and subsequently fetched from DRAM, thereby incurring a significant performance loss. The compilation time of a model is directly proportional to the number of layers in the model. The MLA compiler handles layers requiring large tensor support by splitting these layers into multiple sub-layers, thereby increasing the total number of layers and overall compilation time. Although this feature has been tested on many large tensor models, it is possible that the compilation of a large tensor model may fail due to software bugs. Again, assuming that this model can be successfully ingested by TVM, the user may compile this model to run exclusively on the ARM A65.
