Configure DevKit Networkï
When setting up the DevKit in standalone mode, the primary task is configuring its IP address. The method you use depends on network availability. There are three possible ways to assign an IP address to the DevKit.
Note
Suitable when the developerâs network is less restrictive and provides available ethernet port.

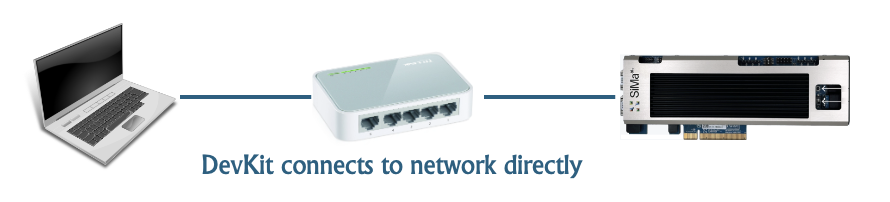

Connect the DevKit directly to a network with DHCP enabled. The DevKit will automatically receive an IP address.
The assigned IP can be determined by accessing the DevKitâs console through the UART interface.
From the serial console, run the following command to check the IP address:
ifconfig eth0 | grep -w inet
The output will display the IP address assigned to the DevKit. For example:
davinci:~$ ifconfig eth0 | grep -w inet
inet 192.168.1.130 netmask 255.255.255.0 broadcast 192.168.1.255
The 192.168.1.130 is the IP address assigned to the DevKit.
Note
Suitable when the developerâs network is not available for Ethernet connection from the DevKit.

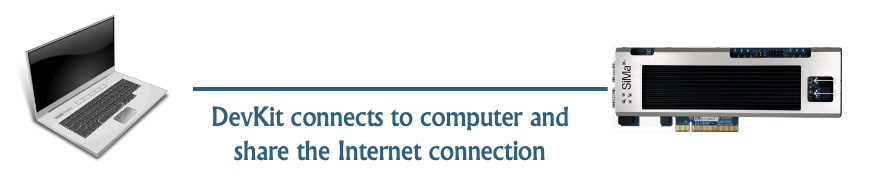

Plug the DevKit into the Ethernet port of the developerâs computer, use a USB-to-Ethernet dongle if developerâs computer doesnât have an ethernet port available.
The computer can share internet with the DevKit, enabling Python package installation using
pip.Requires enabling internet connection sharing on the host computer.
Follow the instructions below for an Ubuntu machine. On other platforms, the instructions may vary; please look for related instructions online on how to share network connections.
On your upper right corner open
Settingsthen go to theNetworksection.Under the
Wiredsection, click the plus sign to create a new settings profile if you donât have an existing profile for the board or just modify the existing one if you do.If you are creating a new profile, name the profile âSharedâ or whatever you want.
In the
IPv4tab, chooseShared to other computers. Click Apply.If you had an existing connection, turn off and on the connection for the changes to take effect.
Your computer should now be networked with the AP.
10.42.0.0/24this is the default subnet used by Ubuntu for this setup, but thereâs not necessarily a guarantee that your computer will use that subnet.If the next step returns no results, run
ifconfigand look for the IP of your Ethernet interface (usuallyeth0) there.
Open a terminal on the Ubuntu machine. Type the following to scan the devices in that IP range:
sima-user@sima-user-machine:~$ nmap -sn 10.42.0.0/24 | grep report Nmap scan report for sima-user-machine (10.42.0.1) Nmap scan report for 10.42.0.241
Here you will be listing the IP addresses used in this subnet. The one ending in
.1is your host machine. The one that doesnât end in.1will be the IP address for the SiMa DevKit. From the code example above, the board is10.42.0.241and the host is10.42.0.1.Test the connection by running:
sima-user@sima-user-machine:~$ ssh sima@10.42.0.241 ... Last login: Mon Nov 27 19:58:33 2023 davinci:~$
To test that you can connect to your host from the board, ping
10.42.0.1from the board, if you have an ssh server running in your host, you can also ssh:davinci:~$ ping 10.42.0.1 PING 10.42.0.1 (10.42.0.1): 56 data bytes 64 bytes from 10.42.0.1: seq=0 ttl=64 time=0.598 ms 64 bytes from 10.42.0.1: seq=1 ttl=64 time=0.703 ms 64 bytes from 10.42.0.1: seq=2 ttl=64 time=0.639 ms ^C --- 10.42.0.1 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max = 0.598/0.646/0.703 ms
If you are unable to ping or SSH to the board, use the static IP configuration method.
Note
Needed when corporate security policies prevent internet sharing with developerâs computer.

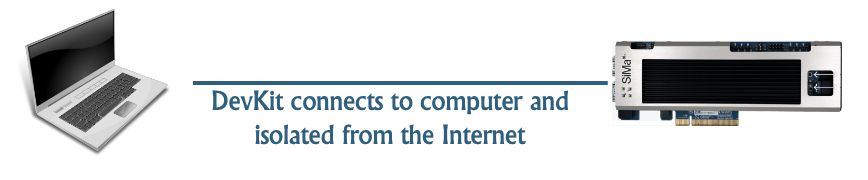

Manually assign IP addresses to both the DevKit and the developerâs machine.
Python dependencies must be manually copied using
scpfrom developerâs computer.
Follow the instructions below for an Ubuntu host system. On other platforms, the instructions may vary; please look for related instructions online on how to share network connections.
On your right upper corner open
Settingsthen go to theNetworksection.Under the
Wiredsection, click the plus sign to create a new settings profile if you donât have an existing profile for the board or just modify the existing one if you do.If you are creating a new profile, select a profile name of your choice. For example, âLocalâ.
In the
IPv4tab, chooseManualand enter the following: * Address192.168.1.10* Netmask255.255.255.0* LeaveGatewayemptyWe recommend you to set up DNS as
8.8.8.8, 8.8.4.4.Click Apply.
If you had an existing connection, turn the connection ON and OFF for the changes to take effect.
Log in to your board using the serial device and run
sudo ifconfig eth0 192.168.1.20 up.Test the connection by running the following command:
sima-user@sima-user-machine:~$ ssh sima@192.168.1.20 .... davinci:~$
Then, setup static IP in the DevKit:
Connect to the board via UART and serial terminal.
Reboot the board.
Press any key to enter U-Boot when prompted with the message,
Hit any key to stop autoboot.Enter the following commands to configure the board to boot up with the previously set IP address.
sima:~$ env set forcenetcfg static; saveenv sima:~$ boot
The board will reboot and use
192.168.1.20as IP address for porteth0and192.168.2.20for port eth1.To modify the boardâs static IP address, edit the network file using the
vicommand.davinci:~$ sudo vi /etc/systemd/network/20-eth0-static.network
In the Network section, update the IP address as needed.
To reset the connectivity back to DHCP mode, reboot and enter U-Boot by pressing any key when prompted to
Hit any key to stop autoboot; then enter the commands below and boot up the board.sima:~$ env set forcenetcfg dhcp; saveenv sima:~$ boot
Once you have confirmed the IP address of the board, you can connect to it using the SSH protocol. For example,
ssh sima@192.168.1.20.
