simaaiencoder
This section describes the GStreamer plugin named simaaiencoder.
Description

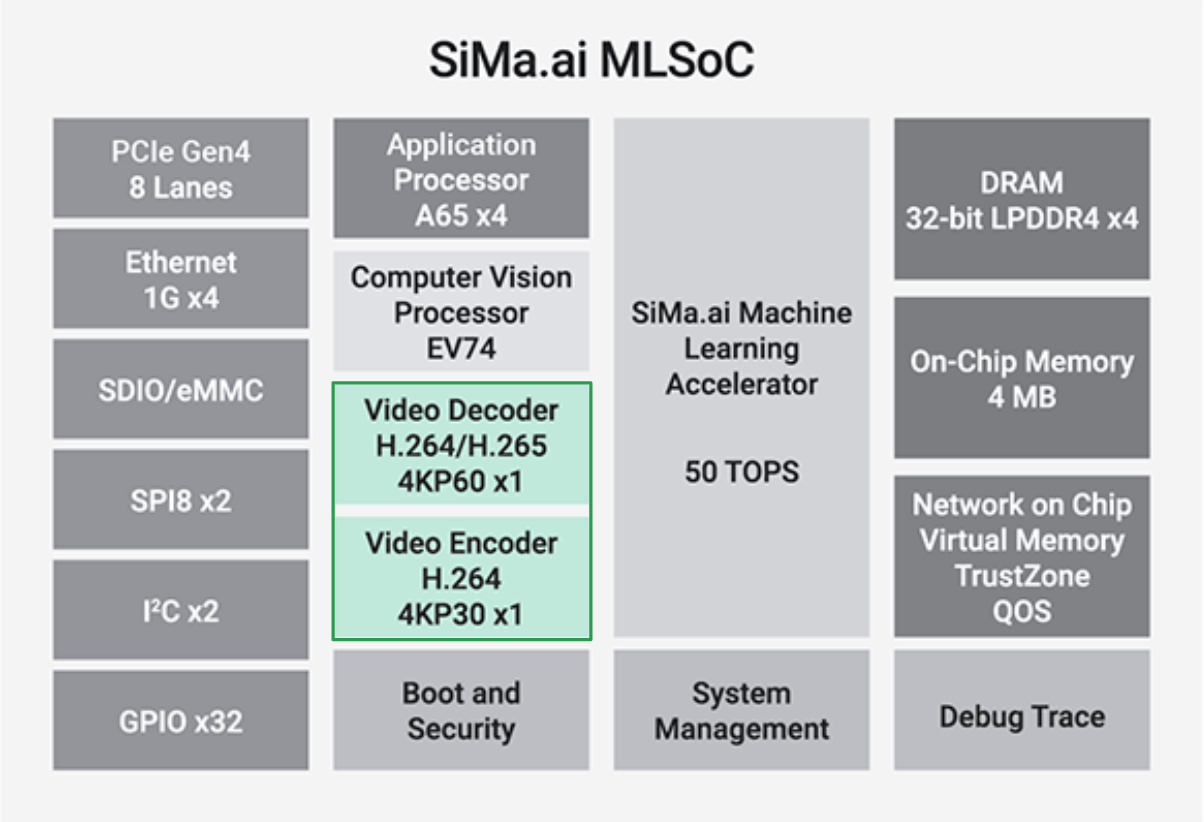

This plugin is used for encoding the outgoing stream using Allegro Encoder.
Config JSON Parameters
Config JSON is not needed for this plugin.
Example Usage
1simaaiencoder enc-width=1280 enc-height=720 enc-bitrate=4000 name=simaaiencoder1 ignore-caps-event=true enc-fmt=YUV420P
gst-inspect-1.0 Output
1Factory Details:
2Rank primary (256)
3Long-name SiMa.AI Encoder Plugin
4Klass Encoder
5Description Video Encoder
6Author Pawan Kumar <pawankumar.ts@sima.ai>
7
8Plugin Details:
9Name simaaiencoder
10Description GStreamer SiMa.ai Encoder Plugin
11Filename ./libgstsimaaiencoder.so
12Version 1.18.16
13License LGPL
14Source module simaai-soc-pipeline-encoder
15Binary package GStreamer SiMa.ai Encoder Plug-in
16Origin URL https://bitbucket.org/sima-ai/simaai-soc-pipeline
17
18GObject
19+----GInitiallyUnowned
20 +----GstObject
21 +----GstElement
22 +----GstSimaAiEncoder
23
24Pad Templates:
25SINK template: 'sink'
26 Availability: Always
27 Capabilities:
28 video/x-raw
29 format: { (string)I420, (string)NV12 }
30
31SRC template: 'src'
32 Availability: Always
33 Capabilities:
34 video/x-h264
35 stream-format: byte-stream
36 alignment: au
37 video/x-h265
38 stream-format: byte-stream
39 alignment: au
40
41Element has no clocking capabilities.
42Element has no URI handling capabilities.
43
44Pads:
45SRC: 'src'
46 Pad Template: 'src'
47SINK: 'sink'
48 Pad Template: 'sink'
49
50Element Properties:
51config : Config JSON for CM (if given no other config params needed)
52 flags: readable, writable
53 String. Default: ""
54dump-cnt : No. of encoded frames to dump
55 flags: readable, writable
56 Integer. Range: 0 - 2147483647 Default: 0
57dump-path : Path for encode frames to be dumped
58 flags: readable, writable
59 String. Default: "/tmp"
60enc-bitrate : Bit rate value in Kbps
61 Choose a value in kbps indicative as below
62 -640x480 1000kbps to 2000kbps
63 -1280x720 2500kbps to 4000kbps
64 -1920x1080 5000Kbps to 7000kbps
65 flags: readable, writable
66 Integer. Range: 0 - 2147483647 Default: -1
67enc-fmt : i/p fmt either "NV12","YUV420P"
68 flags: readable, writable
69 String. Default: "NV12"
70enc-frame-rate : Controls the encode quality parameters with framerate
71 flags: readable, writable
72 Integer. Range: 0 - 2147483647 Default: 30
73enc-height : Input resolution height
74 flags: readable, writable
75 Integer. Range: 0 - 1080 Default: -1
76enc-ip-mode : "async": [Producer and consumer are decoupled in different elements with
77 frame rate control possible and current being consumer]
78 "sync": [Zero copy i/p across preceding producer & present consumer
79 encoder CMA buffers acquired in preceeding to give i/p in NV12 color fmt.
80 Both producer and consumer share same encoder instance handle through unique
81 unique name , passed as "name" or for CM method as "node-name". Zero copy
82 achieved by producer adding custom meta "GstSimaMeta" with custom field
83 "enc-buffer-hndl" being actual encoder input buffer.
84 Specific encoder C++ apis available for the SYNC mode method]
85 flags: readable, writable
86 String. Default: "async"
87enc-level : 4.0, 4.1, 4.2, 5.0, 5.1, 5.2
88 1920x1080:
89 <= 30fps choose 4.0
90 >30fps-60fps choose 4.2
91 >60fps-90fps choose 5.1
92 1280x720:
93 <= 60fps choose 4.0
94 >60fps choose 4.2
95 640x480:
96 choose 4.0
97 if still incorrect,level is adjusted by encoder for ASYNC mode
98 flags: readable, writable
99 String. Default: "4.0"
100enc-profile : H.264(baseline,main,high) & H265(main)
101 flags: readable, writable
102 String. Default: "main"
103enc-type : Either h264 or h265
104 flags: readable, writable
105 String. Default: "h264"
106enc-width : Input resolution width
107 flags: readable, writable
108 Integer. Range: 0 - 1920 Default: -1
109ignore-caps-event : Ignore caps negotiate if prev plugin sends wrong
110 flags: readable, writable
111 Boolean. Default: false
112ip-cache-inval : i/p mapped as cached need invalidate,custom meta having sima-mem-ptr
113 flags: readable, writable
114 Boolean. Default: false
115ip-queue-max-buffers: High water mark for input queue ,if > then it blocks
116 flags: readable, writable
117 Integer. Range: 0 - 2147483647 Default: 30
118ip-queue-min-buffers: Low water mark for input queue
119 flags: readable, writable
120 Integer. Range: 0 - 2147483647 Default: 15
121ip-rate-ctrl : Only if source is not rate controlled like YUV filesrc
122 flags: readable, writable
123 Boolean. Default: false
124name : The name of the object
125 flags: readable, writable, 0x2000
126 String. Default: "simaaiencoder0"
127node-name : As in json for matching it for CM
128 flags: readable, writable
129 String. Default: ""
130parent : The parent of the object
131 flags: readable, writable, 0x2000
132 Object of type "GstObject"
Note
Please refer to simaaiencoder’s README file for more information.
