SiMa.ai Hardware

SiMa.ai offers a portfolio of MLSoC™-based development kits and products designed to support a broad spectrum of edge AI applications — from efficient vision inference to advanced multimodal and generative AI workloads.

Order Your DevKit

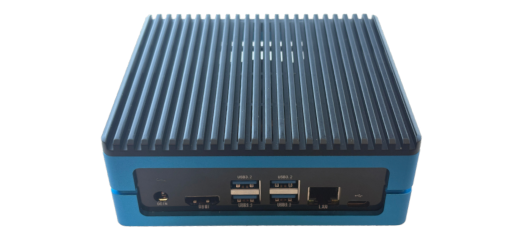

Modalix DevKit

A compact, power-efficient module for embedding Modalix AI capabilities into custom hardware designs.

Modalix Early Access DevKit

Designed for modern AI at the edge with support for LLMs, multimodal inputs, and generative AI workloads.

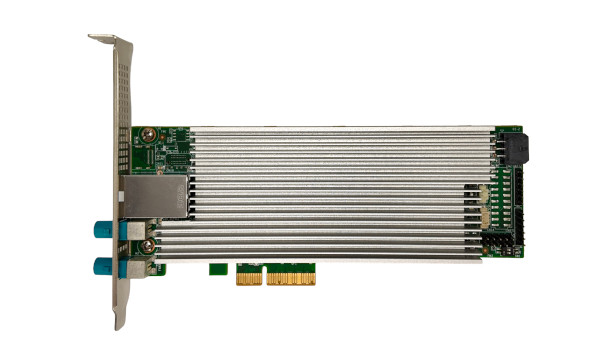

Modalix Early Access PCIe Card

Half-Height/Half-Length (HHHL) card designed for extensible edge compute systems.

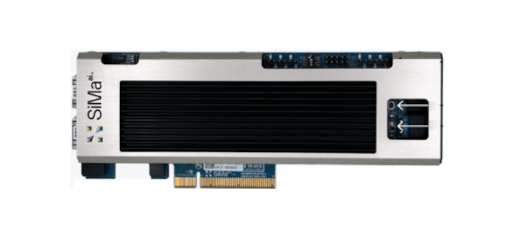

MLSoC

A proven, power-efficient platform for vision-centric edge AI applications. Ideal for deployment and development.

8x ARM Cortex-A65 @ 1.5GHz

Feature	Modalix DevKit	Modalix Early Access DevKit	Modalix Early Access PCIe Card	MLSoC DevKit
Product Brief	view	view	—	view
Preloaded Operating System	eLxr Linux	eLxr Linux	eLxr Linux	Yocto Linux
ARM Cores	8x ARM Cortex-A65 @ 1.5GHz	8x ARM Cortex-A65 @ 1.5GHz	8x ARM Cortex-A65 @ 1.5GHz	4x ARM Cortex-A65 @ 1.15GHz
RAM Size	32GB LPDDR5	64 GB LPDDR5	32GB LPDDR5	16 GB LPDDR4
Storage	16GB eMMC	10 GB eMMC	16GB eMMC	10 GB eMMC
SD Card Slot	✖	✔	✔	✔
NVMe (PCIe)	✔ 500GB	✖	✖	✖
Ethernet	1x 1GbE	1x 1GbE (end0), 1x 10GbE (end1), 2x 10GbE SFP+ (end2/3)	1x 1GbE	1x 1GbE
WiFi/LTE	2x M.2 slots via carrier board, pending s/w support	✖	✖	✖
MIPI CSI	2x 2-lane MIPI CSI	4x 4-lane MIPI CSI	✖	✖
GMSL2 over FAKRA	✖	✖	2x GMSL2 over FAKRA	✖
ISP (Image Signal Processor)	ARM C-71 @ 1.2 GHz	ARM C-71 @ 1.2 GHz	ARM C-71 @ 1.2 GHz	✖
GPIO / Headers	40-pin GPIO header	40-pin GPIO header	✖	40-pin GPIO header
USB	4 USB 3.0 ports	✖	✖	✖
HDMI	1 HDMI 1.4 port	✖	✖	✖
Graphics Controller	Silicon Motion SM768	✖	✖	✖
H.264/H.265 Encoder	4kp60	4kp60	4kp60	4kp30
MJPEG Encoder	4kp30	4kp30	4kp30	✖
H.264/H.265 Decoder	4kp60	4kp60	4kp60	4kp60
AV1 and MJPEG Decoder	4kp60	4kp60	4kp60	✖
Use as a PCIe Card in a host	✖	✖	✔	✔
