Modalix Early Access PCIe Card

The Modalix PCIe HHHL (Half-Height/Half-Length) Early Access board integrates the Modalix device that delivers high-performance and effortless machine learning inference for embedded edge applications.

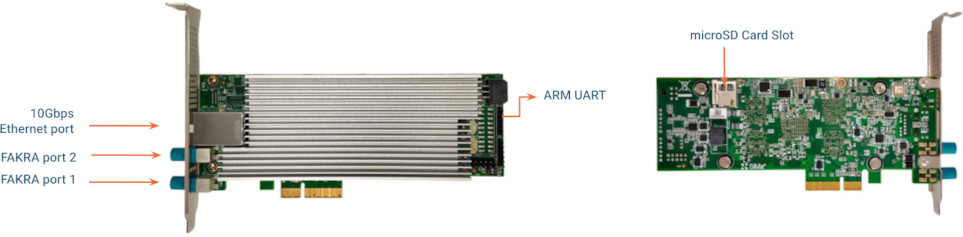

DevKit Interfaces
Interface	Description
Ethernet Ports (eth0, eth1)	RJ45, GigE network interfaces for remote connectivity.
PCI-Express 5.0 x4 Interface	High-speed PCIe interface used for integration into a host system. Adapters may be required depending on the host configuration.
COM Port to Host	Facilitates debugging by connecting to the host system. Ensure the arrow sign on the included cable connects to the left-most pin for proper alignment.
SD Card Slot	The SD Card slot is located at the back of the Modalix EA PCIe card.
GMSL2 FAKRA Port for Camera	Gigabit Multimedia Serial Link ensures stable high-bandwidth video transmission.

PCIe HHHL Board Features
Feature	Details
PCIe Interface	One PCIe Gen 5.0 x4 link interface with a standard board-edge connector.
System Memory	16GB or 32GB LPDDR5 DRAM interface for high-bandwidth, low-latency operation.
eMMC Flash Storage	One 32GB eMMC flash memory interface for boot and system storage.
QSPI NOR Flash	One 128Mbit QSPI NOR flash interface for firmware and bootloader storage.
Ethernet	One 10Gbps Ethernet interface via RJ45 connector.
JTAG Interface	One optional JTAG interface for hardware debug and bring-up.
Micro SD Interface	One Micro SD card interface for removable storage and system recovery.
Debug UART (Troot)	One dedicated debug UART interface for Troot diagnostics and debugging.
Debug UART (Linux)	One dedicated debug UART interface for Linux console access and debugging.
Camera Interfaces	Two GMSL2 FAKRA ports for connecting remote cameras over serialized links.
Status Indicator	One power LED for system power status indication.
