PCIe Mode

Note

Currently, the MLSoC PCIe card is Generally Available (GA), while the Modalix PCIe card is in Early Access (EA).

Note

Please install or upgrade sima-cli before continuing. This guide is intended for use with the latest sima-cli version.

Before you begin:

Make sure the host machine’s operating system is Ubuntu version 22.04 LTS or higher.
Configure your host machine’s UEFI/BIOS settings for optimal performance and proper driver functionality.
- On Intel-based machines, enable SRIOV, IOMMU, and VT-D.
- On AMD-based machines, disable AMD-V and enable IOMMU.

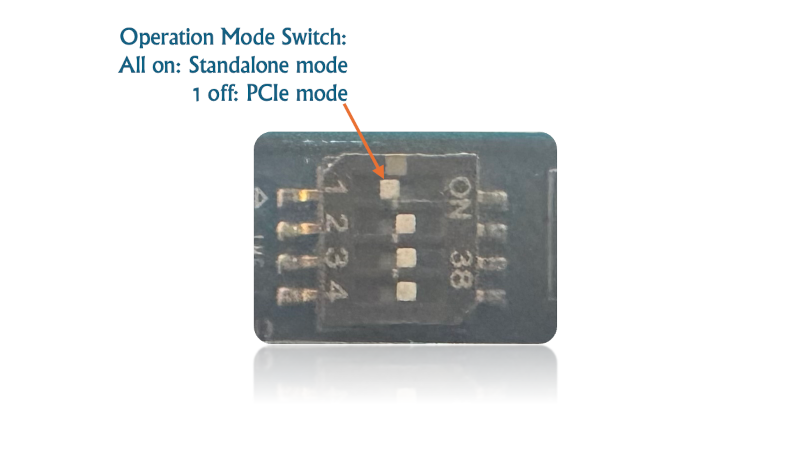

On the DevKit, there are four dip switches as shown above. Make sure switch #1 is in OFF position.
Make sure the Run/Program switch is ON.
Power off the host machine, insert the DevKit into the PCIe slot, and power on the host machine.

For a detailed view of the DevKit interfaces, switches and connectors, refer to the SiMa.ai DevKit Interface.

Note

In rare cases, if you do not need the driver to be automatically loaded when the host machine reboots, create (or edit if already exists) /etc/modprobe.d/blacklist.conf and add the line blacklist sima_mla_drv. Once done, run update-initramfs and reboot the host machine. After reboot the drivers can be loaded manually using insmod or modeprobe.

Run the following command on the Linux host to install the driver.

  sima-user@sima-user-machine:~$ sima-cli install drivers/linux
  ... ... ...
  Component            | Status     | Details
  --------------------------------------------------------------------------------------------------------------------
  Gstreamer            | PASS       | ✅ GStreamer plugin 'pciehost' is installed.
  Kernel Module        | PASS       | ✅ Kernel module 'sima_mla_drv' is installed.
  PCIe Device          | PASS       | ✅ PCIe device (1f06:abcd) detected and bound to 'sima_mla_drv'.

✅ Installation complete.

Note

Please be advised that your MLSoC DevKit may be operating with outdated firmware out of the box. To ensure optimal performance and compatibility, we recommend updating the DevKit in standalone mode first to the matching firmware version as the host driver. For detailed instructions on updating your MLSoC DevKit in standalone mode, see here. After the system is setup, then you can use sima-cli to update the DevKit using virtual IP address.

Run the following command on the Windows host to install the driver.

Warning

This feature is currently in technical preview. Installing this driver will place the system into driver test-signing mode. You will be prompted to confirm before any system changes are made.

C:\Users\sima> sima-cli install drivers/windows
... ... ...
  ✅ Downloaded: pcie_develop_10082025_2.00.081025.1_B31.exe
  🚀 Running installation script in: C:\Users\sima
  📜 Script: pcie_develop_10082025_2.00.081025.1_B31.exe
  ╭─ Post-Installation Instructions ─╮
  │                                  │
  │  Driver successfully installed   │
  │                                  │
  ╰──────────────────────────────────╯
  ✅ Installation completed successfully.

Note

The Virtual Network feature is available in firmware version 1.5 and later on the Linux host. To use this feature, make sure your DevKit is updated to the latest firmware version.

This feature is only available for the Linux host system.

When connected to a host system via PCI Express (PCIe), the SiMa.ai DevKit establishes a virtual ethernet interface. This interface enables direct network communication between the host and the DevKit over high-speed PCIe bus.

The Virtual Network feature is primarily designed for debugging purposes, allowing users to:

Secure Shell (SSH): Access the DevKit’s command-line interface remotely for troubleshooting and system management.

Secure Copy Protocol (SCP): Transfer files between the host and the DevKit securely, facilitating the movement of logs, configurations, and other necessary files during the development and debugging process.

This feature also allows users to:

Update firmware: Manually update firmware using the scp and ssh utilities, when following the File Copy Method.

Assign static IP Address (Ethernet over PCIe): Manually configure static IP address for your host machine/MLSoC device.

By default, 10.0.card num.1 address is assigned to the host machine and 10.0.card num.2 is assigned to the MLSoC device. However, for stable and consistent networking, you must disable the default IP address being assigned to the host interface by passing the module parameter default_ip=false when loading the module. If the module is already loaded remove and then reload it with the default_ip=false parameter, as shown below.

sudo modprobe -r sima_mla_drv

sudo modprobe sima_mla_drv default_ip=false

When loading the module manually, use the command below. This allows you to manually assign a static IP address to the host machine interface and in turn to the MLSoC device.

sudo insmod sima_mla_drv.ko default_ip=false

This also requires the host machine to have ifconfig utility installed.

ifconfig <eth interface> 20.1.2.1

Once an IP address is assigned to the host interface, IP + 1 will be assigned to SoC interface automatically. For example, if 20.1.2.1 is assigned to the host machine, the MLSoC IP will be 20.1.2.2.

When the interfaces are created, the host interface will have a MAC address in the format cardnum:S:I:m:A:0 and the SoC interface will have a MAC address of cardnum:S:I:m:A:1. The IP addresses are assigned upon creation as host:10.0.cardnum.1 and soc:10.0.cardnum.2. This also requires the host machine to have ifconfig utility installed.

ifconfig output on the host machine:

enp2s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 65536
    inet 10.0.0.1  netmask 255.255.255.0  broadcast 10.0.0.255
    inet6 fe80::253:49ff:fe4d:4130  prefixlen 64  scopeid 0x20<link>
    ether 00:53:49:4d:41:30  txqueuelen 1000  (Ethernet)
    RX packets 14107  bytes 4460994 (4.4 MB)
    RX errors 0  dropped 0  overruns 0  frame 0
    TX packets 818  bytes 74840 (74.8 KB)
    TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

ifconfig output on the SiMa.ai DevKit:

eth2: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 65536
    inet 10.0.0.2  netmask 255.255.255.0  broadcast 10.0.0.255
    inet6 fe80::253:49ff:fe4d:4131  prefixlen 64  scopeid 0x20<link>
    ether 00:53:49:4d:41:31  txqueuelen 1000  (Ethernet)
    RX packets 818  bytes 74840 (73.0 KiB)
    RX errors 0  dropped 0  overruns 0  frame 0
    TX packets 14109  bytes 4461636 (4.2 MiB)
    TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

SSH from host to device; use default user name sima and password edgeai to connect.

sima-user@sima-user-machine:~$ ssh sima@10.0.0.2
The authenticity of host '10.0.0.2 (10.0.0.2)' can't be established.
ED25519 key fingerprint is SHA256:ulxwiRM+cCQNJ90R5Qn5eV+9hqvkVNo0eWQ9pY3l8E0.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '10.0.0.2' (ED25519) to the list of known hosts..
sima@10.0.0.2's password:
sima@davinci:~#
