simaaiprocessmla

GStreamer plugin reference: simaaiprocessmla

Note

The simaaiprocessmla plugin can not be found under Catalog ‣ PLUGINS ‣ SiMa Plugins like many other plugins. Instead, this plugin will be dynamically created when importing a ModelSDK pre-compiled model into Edgematic. It will be preceded and followed by simaaiprocesscvu plugins that will preprocess and postprocess the data.

This GStreamer plugin, simaaiprocessmla, executes Machine Learning Accelerator (MLA) inference within a GStreamer pipeline. It takes input buffers, performs inference using a specified MLA model, and outputs the results in new buffers. The plugin handles memory allocation and management, ensuring efficient integration with the SiMa.ai hardware. SiMa.ai’s MLA is a dedicated ML accelerator with runtime libraries for executing ML models, providing significant performance improvements for AI applications.

Plugin Configurations

All plugins in Edgematic have options and configurations that can be accessed via:

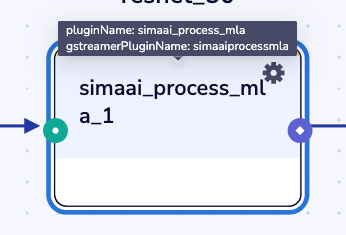

1. The configuration icon on the top right of each plugin ().

2. The source code found in Explorer ‣ SOURCE ‣ plugins.

Plugin configuration options

The plugin configurator provides 3 tabs:

• GENERAL:

  • Host Processor

    • The processor this plugin executes in. In this case, on the Arm cores or MLA.

• CONFIGURATION:

  • This is where the input and output nodes are specified.

• ADVANCED:

  • Plugin configuration template (Optional)

    • The location to the JSON configuration file for this model.

  • Number of buffers (Optional)

    • Number of GstBuffers to use in the source pad buffer queue. (Default: 5)

  • version

    • Version of the JSON configuration file for the simaaiprocessmla plugin.

  • Next plugin CPU

    • Where the next plugin will be processing data. This determines which memory segment to allocate output buffers to.

      • 0 -> Allocating into A65 CPU memory

      • 1 -> Allocating into CVU memory

      • 2 -> Allocating into MLA memory

  • No:of input images

    • Number of inputs for the model.

  • Batch_sz_model

    • The batch size this model was compiled with.

  • in_tensor_sz

    • Input tensor size calculated as N * H * W * C. Reflects the input tensor that the particular model accepts. This value will be used only when batch_size > batch_sz_model

  • out_tensor_sz

    • Output tensor size calculated as N * H * W * C. Reflects the output tensor that the particular model returns. This value will be used only when batch_size > batch_sz_model

  • model_path

    • The location of the model .lm or .elf file

  • Slice width (Optional)

    • The width (in pixels) of each slice or tile that the input tensor/image is divided into for processing by the MLA. Traditionally this is set byt he ModelSDK inside of the tar.gz model mpk config JSON.

    • Example: If the input image is 640 pixels wide and the slice width is set to 128, the image will be split into 5 slices along the width.

  • Slice height (Optional)

    • The height (in pixels) of each slice or tile that the input tensor/image is divided into for processing by the MLA.Traditionally this is set byt he ModelSDK inside of the tar.gz model mpk config JSON.

    • Example: If the input image is 480 pixels high and the slice height is set to 24, the image will be split into 20 slices along the height.

  • Slice depth (Optional)

    • The depth (number of channels, e.g., RGB=3) of each slice or tile. This is typically the number of channels in the input tensor/image.

    • Example: For an RGB image, the slice depth is 3.

  • Data type (Optional)

    • Data type being for the model being processed.

Plugin source configurations (advanced)

If you wish to directly alter the code or configurations for the plugin, simply click on the plugin on the canvas and the source will be highlighted in orange on the left Explorer ‣ SOURCE panel.

Note

The file structure, source code and other information would be found in the simaaiprocessmla documentation for the GStreamer plugin.
